Pipetting Robot

Automated pipetting

Pipetting robot

A new concept in lab automation

Automation of routine pipetting tasks

The new Liquid Handling Station (LHS) pipetting robot from BRAND is your entry point into laboratory automation. With an excellent price/performance ratio and straightforward operation, the system is economical for low and medium throughput labs. Typical applications include:

PCR and qPCR
Accurately pipette small volumes of precious reagents and DNA samples.
Enzyme assays
Pipette, mix and set incubation times quickly and precisely
ELISA
Standardize tedious dilution routines and increase reproducibility of results. Select, save and change pre-defined fluid types on-the-fly.
Cherry picking
Accurately select and transfer sample subsets into new labware.

SIMPLE, EASY, and EFFICIENT

Liquid automation systems

Find out how simple automated pipetting can be with the intuitive BRAND software. Set up your own, customized methods in minutes. The procedure is as simple as preparing for manual pipetting. Instead of using predefined protocols, you work with your own pipetting procedures that can be saved for further use. Unique and convenient features save time in programming and method execution.



For example:

  • the simulation mode lets you verify and optimize your method
  • email notifications inform you of manual interventions and protocol progress
  • and liquid ends can be changed without tools
Liquid Handling Station Pipetting robot

New now!

The SmartExtraction LHS-Kit

Automated isolation of high molecular weight DNA (HMW) from bacteria, yeast, tissue samples, whole blood and rodent tails.

The extraction process is based on the adsorption of the genomic DNA onto Smart Modified Surfaces and does not require magnetic particles for DNA binding. This means that the DNA binds directly to the surface of the modified BRAND tips.

More Information

Outstanding in every detail

Benefits of the pipetting robot

The Liquid Handling Station provides maximum flexibility for small and medium sample throughput and varied pipetting tasks. It closes the gap between electronic pipettes and large, expensive equipment. Seven ANSI / SLAS formatted workplaces can be freely assigned, including PCR tubes and strips, microcentrifuge tubes, reservoirs, and 96- or 384-well plates. Liquid ends are available in three single-channel sizes and two 8-channel sizes. The Liquid Handling Station's compact design and space-saving front door make it an ideal fit where benchtop space is limited.

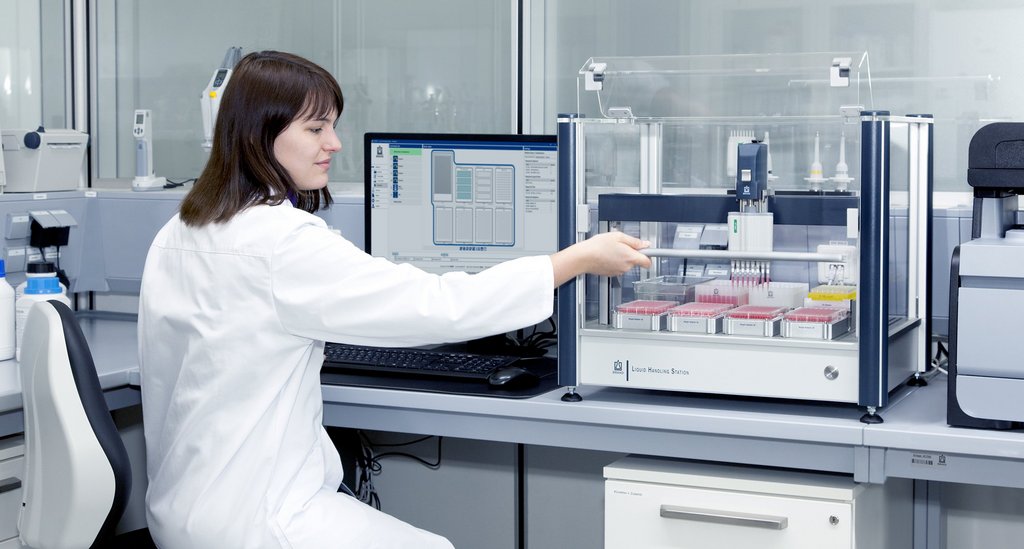

Liquid Handling Station pipetting robot

The Liquid Handling Station provides maximum flexibility for small and medium sample throughput and varied pipetting tasks. It closes the gap between electronic pipettes and large, expensive equipment. Seven ANSI / SLAS formatted workplaces can be freely assigned, including PCR tubes and strips, microcentrifuge tubes, reservoirs, and 96- or 384-well plates. Liquid ends are available in single-channel sizes and 8-channel versions for contact-free fluid delivery. The Liquid Handling Station's compact design and space-saving front door make it an ideal fit where benchtop space is limited. With an excellent price/performance ratio and straightforward operation, the system is economical for low and medium throughput labs. Typical applications include: PCR and qPCR ELISA Enzyme

view product

Liquid End for Liquid Handling Station, 8-Channel, 40-1000 µl

With the Liquid Handling Station, you have maximum flexibility for small and medium sample sizes and changing pipetting tasks. It closes the gap between electronic pipetting and complex, expensive large systems Seven ANSI/SLAS format work stations can be configured as necessary, for example with individual tubes, 8x PCR tube strips, reservoirs, 96-well and 384-well plates. Liquid ends are available in single-channel sizes and 8-channel versions for contact-free fluid delivery. Thanks to its compact design and space-saving front door, the Liquid Handling Station also fits in small laboratory

view product

Teleshake 95 with fixed mounted basic plate for Liquid Handling Station

With the Teleshake 95 module, shaking and heating of samples in microplates and PCR consumables is possible directly inside the Liquid Handling Station pipetting robot from BRAND, without removing the plates from the robot. This saves time and reduces the risk of sample contamination. Applications include sample incubation and intensive stirring of samples during reaction at room temperature or higher.Thanks to its modular design, installation of the heater/shaker is easy. Simply place it on the worktable of the Liquid Handling Station and connect it via a USB port to a PC or notebook and the included

view product

The SmartExtraction LHS-Kit has been designed for automated isolation of high molecular weight DNA (HMW) from bacteria, yeast, tissue samples, whole blood and rodent tails. The kit is based on the patented SmartExtraction Technology using Smart Modified Surfaces invented by IST Innuscreen GmbH. The extraction process is based on the adsorption of the genomic DNA onto Smart Modified Surfaces and does not require magnetic particles for DNA binding. This means that the DNA binds directly to the surface of the modified BRAND tips. After washing, the genomic DNA is eluted from the Smart Modified Surfaces and is ready for use in subsequent downstream applications. The entire extraction process requires only simple mixing by up and down movement of the modified BRAND

view product

Liquid Handling Station flow

Benchtop Cleanroom

The Liquid Handling Station flow is BRAND®’s pipetting robot for applications where samples must be protected from particles and microorganisms. Its brand new FlowBox directs the filtered air flow in laminar, horizontal layers across the consumables, such as plates. With the door closed, the air volume inside the cabinet is replaced 260 times per hour, and exits through openings in the front door.

LHS flow

Downloads

Automated high-throughput liquid transfer of SDS samples

Application Note | pdf | 2 MB

Automatic pipetting of reaction mixtures

Application Note | pdf | 724 KB

Liquid Handling Station - Automated wiping

Application Note | pdf | 331 KB

Liquid Handling Station - Contamination-free pipetting into 384-well microplates

Application Note | pdf | 536 KB

Liquid Handling Station - ELISA

Application Note | pdf | 482 KB

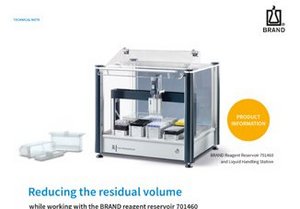

Liquid Handling Station - Reducing residual volume

Application Note | pdf | 585 KB

Liquid Handling Station Protein quantitation assay

Application Note | pdf | 1 MB

Small-scale automatic robot handling line for molecular pathogen diagnostics

Application Note | pdf | 890 KB

SmartExtraction LHS-Kit – Protocol for HMW DNA isolation from cell pellets

Application Note | pdf | 793 KB

SmartExtraction LHS-Kit – Protocol for HMW DNA isolation from mammalian tissues

Application Note | pdf | 786 KB

Qualify and test - free of charge

The BRAND Method Check

Wondering whether automating your method makes sense? Request BRAND’s free Method Check for laboratories! Experts from BRAND will analyze your pipetting tasks and give you specific recommendations on how to automate your applications. Then take two full weeks to test the method right in your own lab using the Liquid Handling Station – free of charge!

Your Method

  • PCR or qPCR
  • ELISA
  • Reformatting and replicating plates
  • Preparing assay-ready plates
  • Cherry picking
  • Enzyme assays
  • Other methods

Method Check

  • Analyze your laboratory’s pipetting tasks
  • Define settings, e.g. fluid properties (liquid types)
  • Specific recommendations for automating your methods

Validation

  • Use a BRAND Liquid Handling Station free of charge for two weeks
  • Free BRAND consumables such as tips or plates for your in-lab demonstration
  • Benefit from BRAND on-site training for the design and implementation of your pipetting methods

Liquid Handling Station Custom Labware Order

If your labware is not included in our labware database, you can order a labware file for the required labware (Cat-No. 998160) which can be imported into the software.

  1. Please send the labware (+ form) to BRAND
  2. A labware file will be created and then can be imported into the software.

Depending on the labware a custom adapter/rack is required and can be ordered as well (Cat-No. 998134 + 998158).

Expert advice available!

We are your automated liquid handling professionals

Just call us or fill in the form below. We will gladly show you how the Liquid Handling Station can streamline your pipetting work. Make an appointment for a free, on-site method check today!

United States

BrandTech Scientific Inc.
Tel.: +1 860 767 2562
In USA, call toll-free: 888 522 2726
info@brandtech.com

United Kingdom

Tel.: +44 7917 861 821
john.mitchell@brand.de

Benelux

Tel.: +32 470045870
Tel.: +31 625324416
carlos.naipal@brand.de

China

BRAND (Shanghai) Trading Co., Ltd.
Tel:+86 21 6422 2318
info@brand.com.cn

India

BRAND Scientific Equipment Pvt. Ltd.
Tel: +91 22 42957790
info@brand.co.in

Malaysia

Interscience Sdn Bhd
Tel.: +60 3 5740 9888
info@its-interscience.com

Singapore

IST Science & Medical Pte Ltd
Tel.: +65 6309 3202
info@its-interscience.com

Contact

Do you want to learn more about the applications of Liquid Handling Station or test it for free in your lab? Then please fill out the form and send it to us. We will get back to you as soon as possible.

By submitting the contact form, you agree to the processing of your data for the purpose of answering your request (Further information and information on revocation and objection can be found in our privacy statement).

Fields marked with * are required.

Save precious time with liquid handling automation

The Liquid Handling Station from BRAND: fast, quiet, and reliable.

The speeds and the particularly dynamic movements of the axis system are designed to permit rapid, exact pipetting while simultaneously minimizing the risk of contamination due to loss of liquid drops during movement. Adapters bring the plates/racks used to a single height, reducing unnecessary vertical move - ments. That saves time during pipetting!

Simply uncomplicated!

The Liquid Handling Station from BRAND combines 45 years of experience in the area of manual Liquid Handling with over 30 years in the manufacture of high-precision disposable items. The pipette system works on the same air-interface principle as the piston-operated pipettes widely used in laboratories, and is designed for medium sample throughput. It takes care of simple, monotonous (and frequently error-prone) routine tasks as well as complex pipetting tasks, such as PCR, qPCR or cherry picking, working through them efficiently.

Maximize product protection

A microprocessor-controlled horizontal, laminar air flow safely covers the entire working area. The air drawn in from the environment passes through an H14 HEPA filter (99.995% efficiency). The filtered air is then directed across the working area in a laminar flow pattern.
